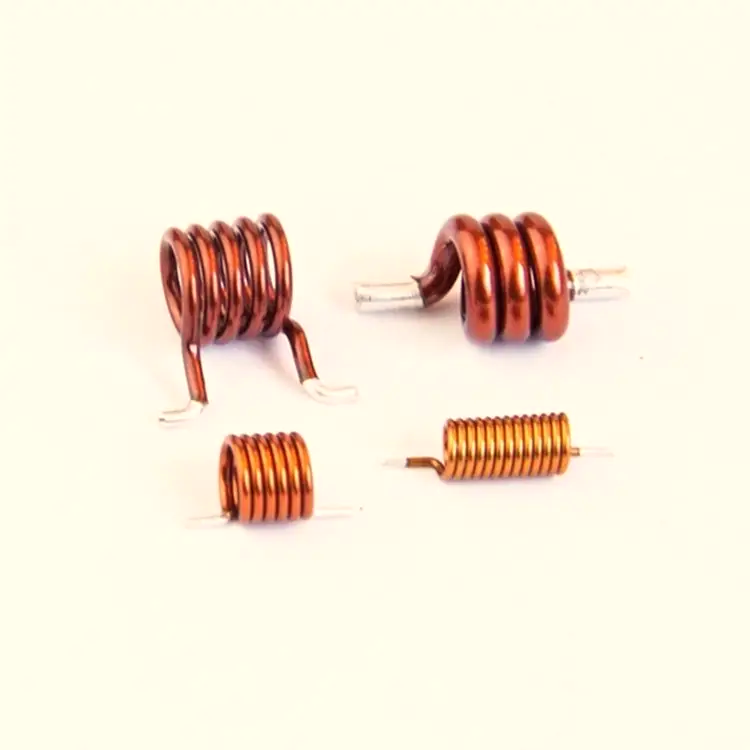

SMD QUADRATE AIR COIL SQA SERIES
APPLICATIONS: Especially for RF applications. Ideal for high current applications. Broad band filter RF-Decoupling.
ELECTRICAL CHARACTERISTICS：

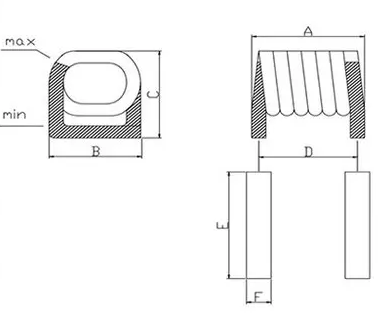

Part Number | A | B | C | D | E | F | L μH | Test
Freq MHz | DCR
mΩ Max | Irms
Max A | SRF(GHz)
Max A | ±0.10 | ±0.20 | ±0.10 | SQA540-27N | 2.67 | 2.67 | 2.79 | 2.29 | 3.05 | 1.02 | 27.00 | 400.0 | 8.10 | 5.50 | 2.60 | SQA540-30N | 2.67 | 2.67 | 2.79 | 2.29 | 3.05 | 1.02 | 30.00 | 400.0 | 8.30 | 5.50 | 2.40 | SQA540-33N | 2.92 | 2.67 | 2.79 | 2.54 | 3.05 | 1.02 | 33.00 | 400.0 | 9.50 | 4.80 | 2.30 | SQA540-36N | 2.92 | 2.67 | 2.79 | 2.54 | 3.05 | 1.02 | 36.00 | 400.0 | 9.80 | 4.80 | 2.30 | SQA540-39N | 2.92 | 2.67 | 2.79 | 2.54 | 3.05 | 1.02 | 39.00 | 400.0 | 10.00 | 4.80 | 2.20 | SQA540-43N | 3.30 | 2.67 | 2.79 | 2.79 | 3.05 | 1.02 | 43.00 | 400.0 | 10.80 | 4.40 | 2.20 | SQA540-47N | 3.30 | 2.67 | 2.79 | 2.79 | 3.05 | 1.02 | 47.00 | 400.0 | 11.30 | 4.40 | 2.20 | SQA550-47N | 4.06 | 3.56 | 3.73 | 3.56 | 4.45 | 1.78 | 47.00 | 400.0 | 6.35 | 4.90 | 1.70 | SQA550-68N | 5.33 | 3.56 | 3.73 | 4.83 | 4.45 | 1.78 | 68.00 | 400.0 | 8.60 | 5.50 | 2.13 | SQA550-82N | 5.84 | 3.56 | 3.73 | 5.33 | 4.45 | 1.78 | 82.00 | 400.0 | 9.40 | 5.60 | 1.79 | SQA570-90N | 5.21 | 5.46 | 5.69 | 4.45 | 6.48 | 2.16 | 90.00 | 50.00 | 5.50 | 5.00 | 1.15 | SQA570-111 | 6.35 | 5.59 | 5.69 | 5.84 | 6.73 | 2.16 | 110.0 | 50.00 | 6.50 | 5.70 | 1.00 | SQA570-131 | 6.73 | 5.59 | 5.69 | 6.22 | 6.73 | 2.16 | 130.0 | 50.00 | 7.50 | 5.40 | 1.00 | SQA570-161 | 7.73 | 5.59 | 5.69 | 6.60 | 6.73 | 2.16 | 160.0 | 50.00 | 8.25 | 5.70 | 1.00 | SQA570-181 | 8.19 | 5.59 | 5.69 | 7.37 | 6.73 | 2.16 | 180.0 | 50.00 | 9.50 | 5.00 | 1.10 | SMDS570-221 | 9.91 | 5.59 | 5.69 | 9.14 | 6.73 | 2.16 | 220.0 | 50.00 | 11.00 | 5.00 | 1.00 | SMDS570-271 | 11.68 | 5.59 | 5.69 | 10.67 | 6.73 | 2.16 | 270.0 | 50.00 | 12.50 | 4.30 | 0.80 | SMDS570-301 | 11.94 | 5.72 | 5.69 | 11.18 | 6.73 | 2.16 | 300.0 | 50.00 | 13.80 | 3.70 | 0.72 |
Operating temperature：-40℃~+125℃ Irms:Current that causes a 25℃ temperature rise from 20℃ ambient. Ambient temperature: -40℃~+125℃(refering to Irms) Inductance tolerance: 2%,and 5%
